Schliesing 200 ZX

Email this to someonePrint this page

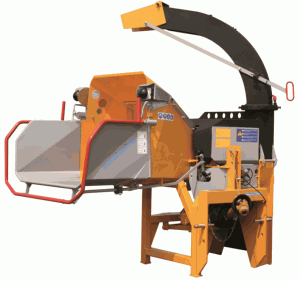

Schliesing 200ZX - Woodpecker Environmental Ltd.Wood chipper with PTO drive. PTO shaft with freewheel clutch.Required input rating: 25-70 hp (18-51 kW)

Price inclusive of power control system

Features

  • 25-70hp required
  • Handles up to 16cm
  • 240mm wide hopper
  • Approx weight. 800kg



Technical Specifications

Drive / mounting Wood chipper with PTO drive. PTO shaft with freewheel clutch. Required input rating: 25-70 hp (18-51 kW). 3-point lift (540 rpm) mounting.
Hopper / housing Feed hopper with flap, pivoting discharge chute in accordance with EN standards. Adjustable chip deflector on discharge chute. Discharge chute on ball bearing flange. Noise insulation.
Chipping unit Chipping unit with safety circuit as per EN 13525. 2-blade chipping disk with fully adjustable blades. Changeable anvils. Chipping disk protection against entangling.
Hydraulics Independent hydraulic circuit. PowerGrip feed rollers with hydraulic forced feeding and separate oil motor. Hydraulic chip size adjustment. Level indicator for hydraulic oil tank.

Safety

This wood chipper complies with the safety regulations of DIN EN 13525.
