Schliesing 200 MX

Email this to someonePrint this page

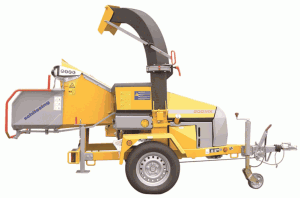

Schliesing 200MX - Woodpecker Environmental Ltd.Wood chipper with Kubota engine 21.0 kW (28 hp) on single-axle chassis (80 km/h). Towing hitch with inertia brake. Jockey wheel at the front, support leg at the back. Road lights conforming to StVZO. TÜV certificate and ABE (General Operating License)(D, NL, F).

Price inclusive of power control system





Features

  • Powered by 28hp Kubota diesel engine
  • Hopper handles up to 16 cm
  • Single-axle chassis 80 km/h
  • Approximate weight 1,000kg



Technical Specifications

Chassis Wood chipper with Kubota engine 21.0 kW (28 hp) on single-axle chassis (80 km/h). Towing hitch with inertia brake. Jockey wheel at the front, support leg at the back. Road lights conforming to StVZO. TÜV certificate and ABE (General Operating License)(D, NL, F).
Hopper / housing Feed hopper with flap. Pivoting discharge chute in accordance with EN. Adjustable discharge chute deflector flap. Discharge chute on ball bearing flange. Noise insulation.
Chipping unit Chipping unit with safety circuit as per EN 13525 requirements. 2-blade chipping disk with fully adjustable knives. Possibility to reposition anvils (horizontally / vertically). Protection against entangling.
Hydraulics Separate hydraulic circuit. Feed rollers with hydraulic forced feeding and separate oil motor. Hydraulic chip size adjustment.

Safety

The wood chipper complies with the safety regulations of DIN EN 13525.
