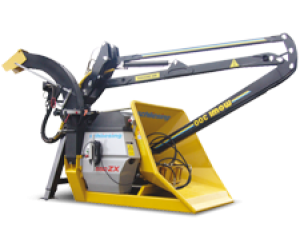

Wood chipper with PTO drive. PTO shaft with freewheel clutch and friction clutch.
Power required: 75-200 hp (55-147 kW)
Price inclusive of power control system
Features
- 75-200hp required
- Handles up to 30cm
- 340mm wide hopper
- Approx weight. 1,620kg
Technical Specifications
| Drive / mounting | Wood chipper with PTO drive. PTO shaft with freewheel clutch and friction clutch. Power required: 75-200 hp (55-147 kW) 3-pont lift (1,000 rpm – standard) 3-point lift with 540 rpm optionally available. |
| Hopper housing | Feed hopper without flap, pivoting discharge chute in accordance with EN. Adjustable discharge chute deflector flap. Discharge chute on ball bearing flange. Sound insulation |
| Chipping unit | PowerGrip chipping unit with safety circuit conforming to EN 13525. 3-blade chipping disk with fully adjustable blades. Possibility to reposition anvils (horizontally / vertically). Protection against entangling. |
| Hydraulics | Separate hydraulic circuit. Feed rollers with hydraulic forced feeding and separate oil motor. Hydraulic chip size adjustment. Fill level indicator for hydraulic oil tank. |
Safety
The wood chipper complies with the safety regulations of DIN EN 13525.
