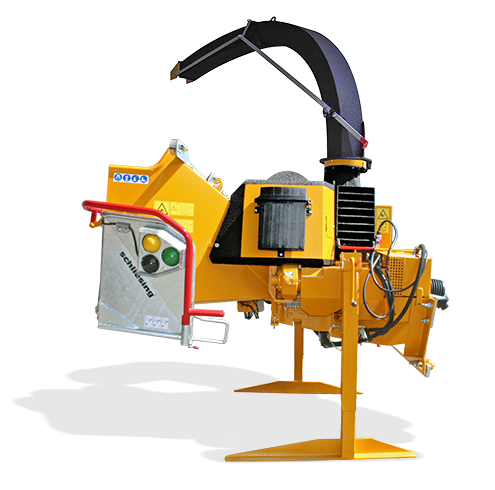

Front mounted wood chipper for UNIMOG trucks, PTO shaft with freewheel clutch. Required power: 100-240 hp (74-177 kW)
Technical Specifications
| Drive / mounting | Front mounted wood chipper for UNIMOG trucks, PTO shaft with freewheel clutch. Required power: 100-240 hp (74-177 kW). Support legs / frame with standard crank lever. |
| Hopper / housing | Feed hopper with flap, pivoting discharge chute in accordance with EN. Adjustable chip deflector on discharge chute. Discharge chute on ball bearing flange. Noise insulation. |
| Chipping unit | PowerGrip chipping unit with safety circuit conforming to EN 13525. 3-blade chipping disk with fully adjustable blades. Possibility to reposition anvils (horizontally / vertically). Protection against entangling. |
| Hydraulics | Separate hydraulic circuit. Feed rollers with hydraulic forced feeding and separate oil motor. Hydraulic chip size adjustment. Fill level indicator for hydraulic oil tank. |
