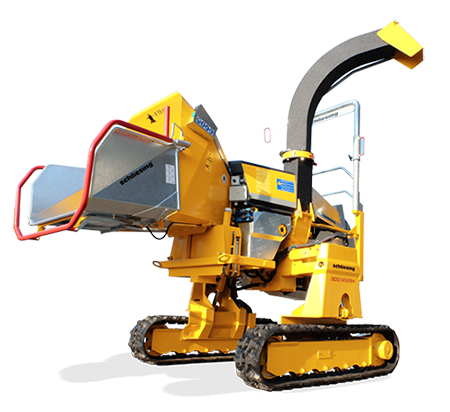

Wood chipper as a crawler version, serially equipped with hydraulically adjustable track beds for slope compensation. With Kubota Turbo-Diesel engine (300 MXRH) of 45 hp (33.0 kW) or 235 MXRH: 4-cylinder Kubota diesel engine (25.7 kW / 35 hp).
Technical Specifications
| Chassis | Machine on hydraulic track bed, based on the engine-driven model 235 MX. Serially equipped with hydraulically adjustable track beds for slope compensation (inclines of up to 30° possible); each track individually controlled (horizontally & vertically). 2 motor versions: 235 MXRH: 4-cylinder Kubota diesel engine (25.7 kW/35 hp) or 300 MXRH: 4-cylinder Kubota turbo diesel engine (33 kW/45 hp). |
| Hopper / housing | Feed hopper with flap. Pivoting discharge chute in accordance with EN. Adjustable discharge chute deflector flap. Discharge chute on ball bearing flange. Noise insulation. |
| Chipping unit | PowerGrip chipping unit with safety circuit as per EN 13525 requirements. 2-blade chipping disk with fully adjustable knives. Possibility to reposition anvils (horizontally / vertically). Protection against entangling. |
| Hydraulics | Separate hydraulic circuit. Feed rollers with hydraulic forced feeding and separate oil motor. Hydraulic chip size adjustment. |
